Fixed Flow Meter: Permanent Pipe Installation for Dedicated Process Lines
Quick Answer: A fixed flow meter welded or flanged directly into the pipe gives you continuous, hands-off monitoring for a single dedicated process fluid. It removes the need for portable checks, keeps operators out of hazardous areas, and delivers a 4-20 mA signal straight to your control room. Engineers choose this setup when the line runs 24/7 and the fluid never changes, for example a 45% caustic soda feed line in a water treatment plant.
Why a Permanent Meter Outperforms a Portable Check
Portable clamp-on meters serve a purpose during audits. Yet in daily operations, a fixed installation eliminates human error and scheduling delays. The transmitter is always on, logging kg/h or litres per minute directly into your PLC. No technician needs to visit the pipe rack at 2 a.m. during a batch run. In practice, plants that switch from monthly portable checks to inline Coriolis or electromagnetic meters catch process drift within minutes, not days.
We have seen this on customer sites many times. A paint manufacturer in Southeast Asia reduced solvent waste by 12% simply because the meter flagged a viscosity shift before the colour went off-spec. That return alone covered a DN25 oval gear flow meter in under four months.
Matching the Meter Technology to Your Process Line
Different fluids demand different measurement principles. For deionised water or weak acids below 20 µS/cm, an inline electromagnetic meter with PTFE lining gets the job done. For high-viscosity liquids above 500 cP, such as glucose syrup or heavy fuel oil, a positive displacement meter handles the task without worrying about Reynolds number. Coriolis mass meters shine when you need mass flow and density in one device, for example a urea dosing line where concentration varies with temperature. Silver Automation Instruments supplies all three types, pre-configured from DN3 to DN200.
Most engineers skip this part, but here is the thing. You also need to check the meter body material against your cleaning protocol. A dairy plant in New Zealand once ordered a standard electromagnetic meter for a CIP (clean-in-place) loop. The EPDM lining swelled after three weeks because they used a 2% nitric acid wash at 85°C. We swapped it to a PTFE lining with Hastelloy electrodes, and the meter has run for four years without a drift.
Installation Details That Prevent Future Headaches
Permanent pipe installation is not just about welding a spool piece. Straight-run requirements still apply. For vortex meters, you want at least 15DN upstream and 5DN downstream. For electromagnetic full-bore sensors, 5DN upstream and 3DN downstream is often enough, but only if you avoid control valves directly in front of the meter. Install the meter in a rising line if possible to keep it flooded. Include a bypass loop for maintenance, because clearing a dedicated process line in a 24/7 operation is painful.
One more detail. If your fluid runs hotter than 120°C, cho

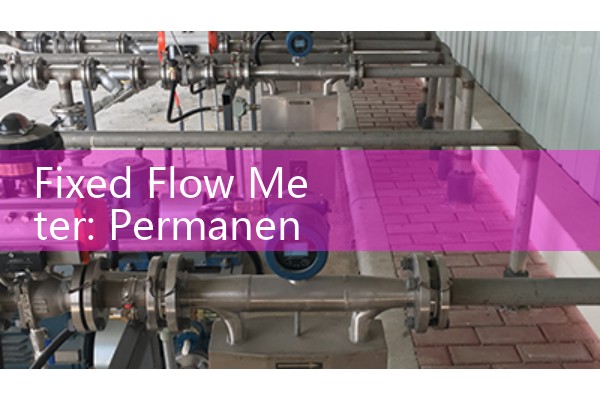

_600x400.jpg)
Where We See the Most Fixed Flow Meter Orders
Dedicated fuel transfer lines in marine bunkering use oval gear meters with pulse output for custody transfer. Chemical blenders in Brazil install Coriolis meters on their resin and hardener lines to maintain perfect mix ratios. Desalination plants across the Middle East rely on fixed electromagnetic meters on brine discharge pipes, often in ATEX Zone 1 enclosures. Wastewater plants in Indonesia monitor polymer dosing with mini electromagnetic meters starting at DN6.
A customer in Vietnam recently asked us for a seawater flow meter for a desalination pilot plant. The brief was straightforward: DN32, 0–6 m³/h, 63 bar, 316L electrodes, and a 4-20 mA HART output. We shipped a pre-calibrated meter within five working days. That speed is possible because we keep standard fixed flow meter bodies and transmitters in stock, ready for final configuration.
Five Questions Engineers Ask Before Buying
Can I use a fixed meter for aggressive media like hydrochloric acid?
Yes. We specify PTFE or PFA lining with tantalum or platinum electrodes for strong acids. Always share the full chemical concentration and temperature when you request a quote.
What flow range can a single fixed meter cover?
It depends on the technology. A Coriolis meter can turn down 20:1 with accuracy. For large spans, we sometimes recommend a dual-range setup with two meters on a manifold.
Do you include factory calibration certificates?
Every Silver Automation Instruments fixed flow meter leaves our Nanjing workshop with a 5-point calibration traceable to national standards. We email the PDF certificate on the same day we ship.
Which outputs work with a Siemens or Allen-Bradley PLC?
We supply 4-20 mA, pulse, and RS485 Modbus RTU as standard. Profibus-DP or Ethernet/IP are available on request. Tell us your PLC brand and we match the terminal block labels.
Can I get a meter for a high-pressure glycol line at 150 bar?
Yes. We have built fixed Coriolis meters rated to 200 bar with Super Duplex stainless steel bodies for deepwater applications. Send your maximum working pressure (bar) and pipe schedule.
Get a fixed flow meter built for your dedicated line. Tell us the fluid name, flow range, pipe size (DN), pressure (bar), and temperature (°C). We will propose the right technology and mounting configuration. Email [email protected], call +86-25-68650347, or message us on WhatsApp at +86-25-52155837. WeChat: +86 15365082610. Silver Automation Instruments delivers pre-wired, pre-calibrated flow meters ready for permanent pipe installation.
